Java爬虫学习:利用HttpClient和Jsoup库实现简单的Java爬虫程序

HttpClient简介

HttpClient是Apache Jakarta Common下的子项目，可以用来提供高效的、最新的、功能丰富的支持HTTP协议的客户端编程工具包，并且它支持 HTTP 协议最新的版本。它的主要功能有：

(1) 实现了所有 HTTP 的方法（GET,POST,PUT,HEAD 等）
(2) 支持自动转向
(3) 支持 HTTPS 协议
(4) 支持代理服务器等

Jsoup简介

jsoup是一款Java的HTML解析器，可直接解析某个URL地址、HTML文本内容。它提供了一套非常省力的API，可通过DOM，CSS以及类似于jQuery的操作方法来取出和操作数据。它的主要功能有：

(1) 从一个URL，文件或字符串中解析HTML；
(2) 使用DOM或CSS选择器来查找、取出数据；
(3) 可操作HTML元素、属性、文本；

使用步骤

maven项目添加依赖

pom.xml文件依赖如下：

<dependency>
    <groupId>org.apache.httpcomponents</groupId>
    <artifactId>httpclient</artifactId>
    <version>4.5.2</version>
</dependency>

<dependency>
    <groupId>org.jsoup</groupId>
    <artifactId>jsoup</artifactId>
    <version>1.8.3</version>
</dependency>

编写Junit测试代码

代码


import org.apache.http.HttpEntity;
import org.apache.http.client.config.RequestConfig;
import org.apache.http.client.methods.CloseableHttpResponse;
import org.apache.http.client.methods.HttpGet;
import org.apache.http.client.protocol.HttpClientContext;
import org.apache.http.impl.client.CloseableHttpClient;
import org.apache.http.impl.client.HttpClientBuilder;
import org.apache.http.util.EntityUtils;
import org.jsoup.Jsoup;
import org.jsoup.nodes.Document;
import org.jsoup.nodes.Element;
import org.junit.Test;

import java.util.List;

/**
 * HttpClient & Jsoup libruary test class
 *
 * Created by xuyh at 2017/11/6 15:28.
 */
public class HttpClientJsoupTest {
	@Test
	public void test() {
	        //通过httpClient获取网页响应,将返回的响应解析为纯文本
		HttpGet httpGet = new HttpGet("http://sports.sina.com.cn/");
		httpGet.setConfig(RequestConfig.custom().setSocketTimeout(30000).setConnectTimeout(30000).build());
		CloseableHttpClient httpClient = null;
		CloseableHttpResponse response = null;

		String responseStr = "";
		try {
			httpClient = HttpClientBuilder.create().build();
			HttpClientContext context = HttpClientContext.create();
			response = httpClient.execute(httpGet, context);
			int state = response.getStatusLine().getStatusCode();
			if (state != 200)
				responseStr = "";
			HttpEntity entity = response.getEntity();
			if (entity != null)
				responseStr = EntityUtils.toString(entity, "utf-8");
		} catch (Exception e) {
			e.printStackTrace();
		} finally {
			try {
				if (response != null)
					response.close();
				if (httpClient != null)
					httpClient.close();
			} catch (Exception ex) {
				ex.printStackTrace();
			}
		}

		if (responseStr == null)
			return;

		//将解析到的纯文本用Jsoup工具转换成Document文档并进行操作
		Document document = Jsoup.parse(responseStr);
		List<Element> elements = document.getElementsByAttributeValue("class", "phdnews_txt fr").first()
				.getElementsByAttributeValue("class", "phdnews_hdline");
		elements.forEach(element -> {
			for (Element e : element.getElementsByTag("a")) {
				System.out.println(e.attr("href"));
				System.out.println(e.text());
			}
		});
	}
}

详解

新建HttpGet对象，对象将从 http://sports.sina.com.cn/ 这个URL地址获取GET响应。并设置socket超时时间和连接超时时间分别为30000ms。

1 2	HttpGet httpGet = new HttpGet("http://sports.sina.com.cn/"); httpGet.setConfig(RequestConfig.custom().setSocketTimeout(30000).setConnectTimeout(30000).build());

通过HttpClientBuilder新建一个CloseableHttpClient对象，并执行上面的HttpGet规定的请求，将响应放在新建的HttpClientContext对象中。最后从HttpClientContext对象中获取响应的文本格式。

CloseableHttpClient httpClient = null;
CloseableHttpResponse response = null;

String responseStr = "";
try {
	httpClient = HttpClientBuilder.create().build();
	HttpClientContext context = HttpClientContext.create();

	response = httpClient.execute(httpGet, context);

	int state = response.getStatusLine().getStatusCode();
	if (state != 200)
		responseStr = "";


	HttpEntity entity = response.getEntity();
	if (entity != null)
		responseStr = EntityUtils.toString(entity, "utf-8");


} catch (Exception e) {
	e.printStackTrace();
} finally {
	try {
		if (response != null)
			response.close();
		if (httpClient != null)
			httpClient.close();
	} catch (Exception ex) {
		ex.printStackTrace();
	}
}

将响应的文本用Jsoup库解析，得到其中的各个元素

Document document = Jsoup.parse(responseStr);

List<Element> elements = document.getElementsByAttributeValue("class", "phdnews_txt fr").first()
		.getElementsByAttributeValue("class", "phdnews_hdline");

elements.forEach(element -> {
	for (Element e : element.getElementsByTag("a")) {
		System.out.println(e.attr("href"));
		System.out.println(e.text());
	}
});

Jsoup的Document对象继承自org.jsoup.nodes.Element类和Element均有的部分方法：

public Element getElementById(String id);//通过id获取元素
public Elements getElementsByClass(String className);//通过className获取元素
public Elements getElementsByAttributeValue(String key, String value);//通过属性值获取元素
public Elements getElementsByTag(String tagName);//通过标签名获取元素
public String attr(String attributeKey);//获取本元素的属性值
public String text();//获取本元素的内容

其中HTML规定的元素格式为：

<div class="code">  <!--div 是元素的标签--> <!--class="code" 是元素的属性和属性值-->
	<div>
		<br>
			这是第一个段落。    <!--元素的内容-->
		<br>
	</div>
</div>

运行结果

运行结果如下所示

http://sports.sina.com.cn/sportsevents/3v3/2017-11-05/doc-ifynmzrs7218551.shtml
3X3黄金联赛冠军赛山西队夺冠!独享48万
http://video.sina.com.cn/sports/k/cba/1105final3x3/
视频
http://video.sina.com.cn/p/sports/k/v/doc/2017-11-05/181467390769.html
黄金mvp集锦
http://video.sina.com.cn/p/sports/k/v/doc/2017-11-05/170167390621.html
直捣黄龙1v2
http://video.sina.com.cn/p/sports/k/v/doc/2017-11-05/183267390917.html
5佳球:库里式虚晃
http://video.sina.com.cn/p/sports/k/v/doc/2017-11-05/150067390331.html
大嫂徐冬冬亮相
http://video.sina.com.cn/p/sports/k/v/doc/2017-11-05/145367390313.html
现场众多美女云集
http://video.sina.com.cn/p/sports/c/zj/v/doc/2017-11-05/150867390337.html
啦啦队热舞表演
http://sports.sina.com.cn/nba/
哈登56分周琦暴扣火箭胜
http://sports.sina.com.cn/basketball/nba/2017-11-06/doc-ifynmzrs7300047.shtml
詹皇26分骑士负

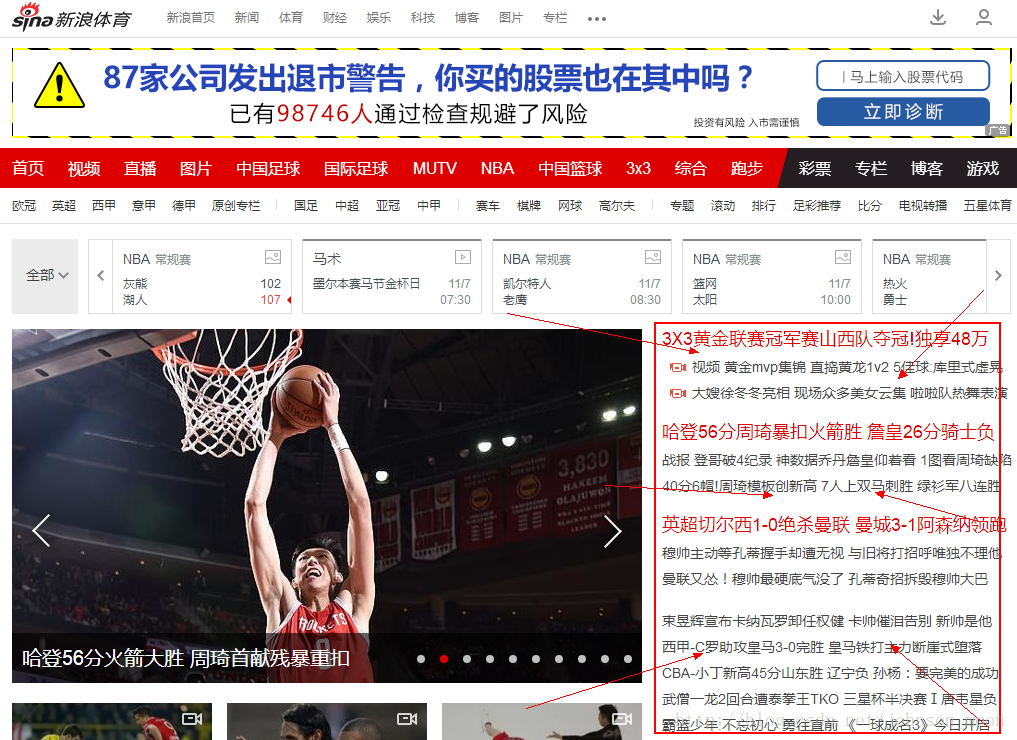

爬取的网页内容区域为下图所示：

编写工具类

将HttpClient和Jsoup进行封装，形成一个工具类，内容如下：


import org.apache.http.HttpEntity;
import org.apache.http.NameValuePair;
import org.apache.http.client.CookieStore;
import org.apache.http.client.config.RequestConfig;
import org.apache.http.client.entity.UrlEncodedFormEntity;
import org.apache.http.client.methods.CloseableHttpResponse;
import org.apache.http.client.methods.HttpGet;
import org.apache.http.client.methods.HttpPost;
import org.apache.http.client.protocol.HttpClientContext;
import org.apache.http.conn.ssl.SSLConnectionSocketFactory;
import org.apache.http.cookie.Cookie;
import org.apache.http.entity.ContentType;
import org.apache.http.entity.StringEntity;
import org.apache.http.impl.client.CloseableHttpClient;
import org.apache.http.impl.client.HttpClientBuilder;
import org.apache.http.impl.client.HttpClients;
import org.apache.http.message.BasicNameValuePair;
import org.apache.http.ssl.SSLContextBuilder;
import org.apache.http.util.EntityUtils;
import org.jsoup.Jsoup;
import org.jsoup.nodes.Document;

import javax.net.ssl.*;
import java.io.IOException;
import java.security.GeneralSecurityException;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

/**
 * <pre>
 * Http工具，包含：
 * 普通http请求工具(使用httpClient进行http,https请求的发送)
 * </pre>
 * Created by xuyh at 2017/7/17 19:08.
 */
public class HttpUtils {
	/**
	 * 请求超时时间,默认20000ms
	 */
	private int timeout = 20000;
	/**
	 * cookie表
	 */
	private Map<String, String> cookieMap = new HashMap<>();

	/**
	 * 请求编码(处理返回结果)，默认UTF-8
	 */
	private String charset = "UTF-8";

	private static HttpUtils httpUtils;

	private HttpUtils() {
	}

	/**
	 * 获取实例
	 *
	 * @return
	 */
	public static HttpUtils getInstance() {
		if (httpUtils == null)
			httpUtils = new HttpUtils();
		return httpUtils;
	}

	/**
	 * 清空cookieMap
	 */
	public void invalidCookieMap() {
		cookieMap.clear();
	}

	public int getTimeout() {
		return timeout;
	}

	/**
	 * 设置请求超时时间
	 *
	 * @param timeout
	 */
	public void setTimeout(int timeout) {
		this.timeout = timeout;
	}

	public String getCharset() {
		return charset;
	}

	/**
	 * 设置请求字符编码集
	 *
	 * @param charset
	 */
	public void setCharset(String charset) {
		this.charset = charset;
	}

	/**
	 * 将网页返回为解析后的文档格式
	 *
	 * @param html
	 * @return
	 * @throws Exception
	 */
	public static Document parseHtmlToDoc(String html) throws Exception {
		return removeHtmlSpace(html);
	}

	private static Document removeHtmlSpace(String str) {
		Document doc = Jsoup.parse(str);
		String result = doc.html().replace("&nbsp;", "");
		return Jsoup.parse(result);
	}

	/**
	 * 执行get请求,返回doc
	 *
	 * @param url
	 * @return
	 * @throws Exception
	 */
	public Document executeGetAsDocument(String url) throws Exception {
		return parseHtmlToDoc(executeGet(url));
	}

	/**
	 * 执行get请求
	 *
	 * @param url
	 * @return
	 * @throws Exception
	 */
	public String executeGet(String url) throws Exception {
		HttpGet httpGet = new HttpGet(url);
		httpGet.setHeader("Cookie", convertCookieMapToString(cookieMap));
		httpGet.setConfig(RequestConfig.custom().setSocketTimeout(timeout).setConnectTimeout(timeout).build());
		CloseableHttpClient httpClient = null;
		String str = "";
		try {
			httpClient = HttpClientBuilder.create().build();
			HttpClientContext context = HttpClientContext.create();
			CloseableHttpResponse response = httpClient.execute(httpGet, context);
			getCookiesFromCookieStore(context.getCookieStore(), cookieMap);
			int state = response.getStatusLine().getStatusCode();
			if (state == 404) {
				str = "";
			}
			try {
				HttpEntity entity = response.getEntity();
				if (entity != null) {
					str = EntityUtils.toString(entity, charset);
				}
			} finally {
				response.close();
			}
		} catch (IOException e) {
			throw e;
		} finally {
			try {
				if (httpClient != null)
					httpClient.close();
			} catch (IOException e) {
				throw e;
			}
		}
		return str;
	}

	/**
	 * 用https执行get请求,返回doc
	 *
	 * @param url
	 * @return
	 * @throws Exception
	 */
	public Document executeGetWithSSLAsDocument(String url) throws Exception {
		return parseHtmlToDoc(executeGetWithSSL(url));
	}

	/**
	 * 用https执行get请求
	 *
	 * @param url
	 * @return
	 * @throws Exception
	 */
	public String executeGetWithSSL(String url) throws Exception {
		HttpGet httpGet = new HttpGet(url);
		httpGet.setHeader("Cookie", convertCookieMapToString(cookieMap));
		httpGet.setConfig(RequestConfig.custom().setSocketTimeout(timeout).setConnectTimeout(timeout).build());
		CloseableHttpClient httpClient = null;
		String str = "";
		try {
			httpClient = createSSLInsecureClient();
			HttpClientContext context = HttpClientContext.create();
			CloseableHttpResponse response = httpClient.execute(httpGet, context);
			getCookiesFromCookieStore(context.getCookieStore(), cookieMap);
			int state = response.getStatusLine().getStatusCode();
			if (state == 404) {
				str = "";
			}
			try {
				HttpEntity entity = response.getEntity();
				if (entity != null) {
					str = EntityUtils.toString(entity, charset);
				}
			} finally {
				response.close();
			}
		} catch (IOException e) {
			throw e;
		} catch (GeneralSecurityException ex) {
			throw ex;
		} finally {
			try {
				if (httpClient != null)
					httpClient.close();
			} catch (IOException e) {
				throw e;
			}
		}
		return str;
	}

	/**
	 * 执行post请求,返回doc
	 *
	 * @param url
	 * @param params
	 * @return
	 * @throws Exception
	 */
	public Document executePostAsDocument(String url, Map<String, String> params) throws Exception {
		return parseHtmlToDoc(executePost(url, params));
	}

	/**
	 * 执行post请求
	 *
	 * @param url
	 * @param params
	 * @return
	 * @throws Exception
	 */
	public String executePost(String url, Map<String, String> params) throws Exception {
		String reStr = "";
		HttpPost httpPost = new HttpPost(url);
		httpPost.setConfig(RequestConfig.custom().setSocketTimeout(timeout).setConnectTimeout(timeout).build());
		httpPost.setHeader("Cookie", convertCookieMapToString(cookieMap));
		List<NameValuePair> paramsRe = new ArrayList<>();
		for (String key : params.keySet()) {
			paramsRe.add(new BasicNameValuePair(key, params.get(key)));
		}
		CloseableHttpClient httpclient = HttpClientBuilder.create().build();
		CloseableHttpResponse response;
		try {
			httpPost.setEntity(new UrlEncodedFormEntity(paramsRe));
			HttpClientContext context = HttpClientContext.create();
			response = httpclient.execute(httpPost, context);
			getCookiesFromCookieStore(context.getCookieStore(), cookieMap);
			HttpEntity entity = response.getEntity();
			reStr = EntityUtils.toString(entity, charset);
		} catch (IOException e) {
			throw e;
		} finally {
			httpPost.releaseConnection();
		}
		return reStr;
	}

	/**
	 * 用https执行post请求,返回doc
	 *
	 * @param url
	 * @param params
	 * @return
	 * @throws Exception
	 */
	public Document executePostWithSSLAsDocument(String url, Map<String, String> params) throws Exception {
		return parseHtmlToDoc(executePostWithSSL(url, params));
	}

	/**
	 * 用https执行post请求
	 *
	 * @param url
	 * @param params
	 * @return
	 * @throws Exception
	 */
	public String executePostWithSSL(String url, Map<String, String> params) throws Exception {
		String re = "";
		HttpPost post = new HttpPost(url);
		List<NameValuePair> paramsRe = new ArrayList<>();
		for (String key : params.keySet()) {
			paramsRe.add(new BasicNameValuePair(key, params.get(key)));
		}
		post.setHeader("Cookie", convertCookieMapToString(cookieMap));
		post.setConfig(RequestConfig.custom().setSocketTimeout(timeout).setConnectTimeout(timeout).build());
		CloseableHttpResponse response;
		try {
			CloseableHttpClient httpClientRe = createSSLInsecureClient();
			HttpClientContext contextRe = HttpClientContext.create();
			post.setEntity(new UrlEncodedFormEntity(paramsRe));
			response = httpClientRe.execute(post, contextRe);
			HttpEntity entity = response.getEntity();
			if (entity != null) {
				re = EntityUtils.toString(entity, charset);
			}
			getCookiesFromCookieStore(contextRe.getCookieStore(), cookieMap);
		} catch (Exception e) {
			throw e;
		}
		return re;
	}

	/**
	 * 发送JSON格式body的POST请求
	 *
	 * @param url 地址
	 * @param jsonBody json body
	 * @return
	 * @throws Exception
	 */
	public String executePostWithJson(String url, String jsonBody) throws Exception {
		String reStr = "";
		HttpPost httpPost = new HttpPost(url);
		httpPost.setConfig(RequestConfig.custom().setSocketTimeout(timeout).setConnectTimeout(timeout).build());
		httpPost.setHeader("Cookie", convertCookieMapToString(cookieMap));
		CloseableHttpClient httpclient = HttpClientBuilder.create().build();
		CloseableHttpResponse response;
		try {
			httpPost.setEntity(new StringEntity(jsonBody, ContentType.APPLICATION_JSON));
			HttpClientContext context = HttpClientContext.create();
			response = httpclient.execute(httpPost, context);
			getCookiesFromCookieStore(context.getCookieStore(), cookieMap);
			HttpEntity entity = response.getEntity();
			reStr = EntityUtils.toString(entity, charset);
		} catch (IOException e) {
			throw e;
		} finally {
			httpPost.releaseConnection();
		}
		return reStr;
	}

	/**
	 * 发送JSON格式body的SSL POST请求
	 *
	 * @param url 地址
	 * @param jsonBody json body
	 * @return
	 * @throws Exception
	 */
	public String executePostWithJsonAndSSL(String url, String jsonBody) throws Exception {
		String re = "";
		HttpPost post = new HttpPost(url);
		post.setHeader("Cookie", convertCookieMapToString(cookieMap));
		post.setConfig(RequestConfig.custom().setSocketTimeout(timeout).setConnectTimeout(timeout).build());
		CloseableHttpResponse response;
		try {
			CloseableHttpClient httpClientRe = createSSLInsecureClient();
			HttpClientContext contextRe = HttpClientContext.create();
			post.setEntity(new StringEntity(jsonBody, ContentType.APPLICATION_JSON));
			response = httpClientRe.execute(post, contextRe);
			HttpEntity entity = response.getEntity();
			if (entity != null) {
				re = EntityUtils.toString(entity, charset);
			}
			getCookiesFromCookieStore(contextRe.getCookieStore(), cookieMap);
		} catch (Exception e) {
			throw e;
		}
		return re;
	}

	private void getCookiesFromCookieStore(CookieStore cookieStore, Map<String, String> cookieMap) {
		List<Cookie> cookies = cookieStore.getCookies();
		for (Cookie cookie : cookies) {
			cookieMap.put(cookie.getName(), cookie.getValue());
		}
	}

	private String convertCookieMapToString(Map<String, String> map) {
		String cookie = "";
		for (String key : map.keySet()) {
			cookie += (key + "=" + map.get(key) + "; ");
		}
		if (map.size() > 0) {
			cookie = cookie.substring(0, cookie.length() - 2);
		}
		return cookie;
	}

	/**
	 * 创建 SSL连接
	 *
	 * @return
	 * @throws GeneralSecurityException
	 */
	private static CloseableHttpClient createSSLInsecureClient() throws GeneralSecurityException {
		try {
			SSLContext sslContext = new SSLContextBuilder().loadTrustMaterial(null, (chain, authType) -> true).build();
			SSLConnectionSocketFactory sslConnectionSocketFactory = new SSLConnectionSocketFactory(sslContext,
					(s, sslContextL) -> true);
			return HttpClients.custom().setSSLSocketFactory(sslConnectionSocketFactory).build();
		} catch (GeneralSecurityException e) {
			throw e;
		}
	}
}

上面的工具类不仅可以进行网页内容的获取，还能够进行http请求的发送。

源码地址

https://github.com/johnsonmoon/HttpUtils.git
